In-line automatic pressure unit.
Assembled on a pump for automatic water supply and to reduce the water hammer.
Free of maintenance without preload of air.
Quiet running operation. Non return valve built-in, pressure gauge, pressure switch and electronic control with dry running function integrated with manual reset button.
Adjustable starting pressure 1.5 - 2.5 bar
In-line execution to reduce friction losses.
Maximum pressure 10 bar
Maximum current 12 A
Plastic union connection included.
Plastic components in polypropylene. Internal membrane in natural rubber. Screws in stainless steel AISI 304.

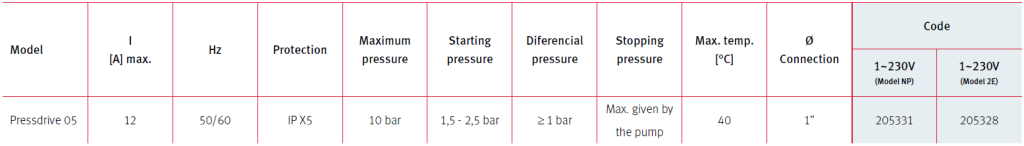

Series features Pressdrive 05
- Pressure gauge: Included
- Discharge connection type: Nut
- Discharge diameter: 1" G
- Suction connection type: Rosca (Racord 3 piezas)
- Suction diameter: 1" G
- Protection rating: IP55
- Liquid temperature (ºC): Min: 4 - Max: 50
- Maximum working pressure (bar): 10 bar
- Starting pressure: 1,5-2,5 bar
