Silenplus
Centrifugal single stage pump with variable speed for water recirculation and filtration.
Water recirculation and filtration for small, medium and large residential swimming pools. Silent. Self-priming up to 4m.
Features Silenplus
Electrical features
- Electrical isolation: F Class
- Motor type: Asynchronous
- Protection rating: IPX5
- Reset: Automatic
- Service factor: S1
Materials
- Diffuser/s: Technopolymer
- Discharge body: Technopolymer
- Impeller/s: Technopolymer
- Mechanical seal: Aluminium-Graphite
- Motor casing: Aluminium
- O-rings: NBR/EPDM
- Pre-filter: Technopolymer
- Pump body: Technopolymer
- Pump shaft: Stainless steel AISI 431
- Suction body: Technopolymer
Manufacturing features
- Discharge connection type: Glue union
- Motor cooling: Fan
- Seal type: Mechanical seal
- Suction connection type: Glue union
Limitations
- Maximum suction (m): 4
- Water temperature (ºC): Max: 40

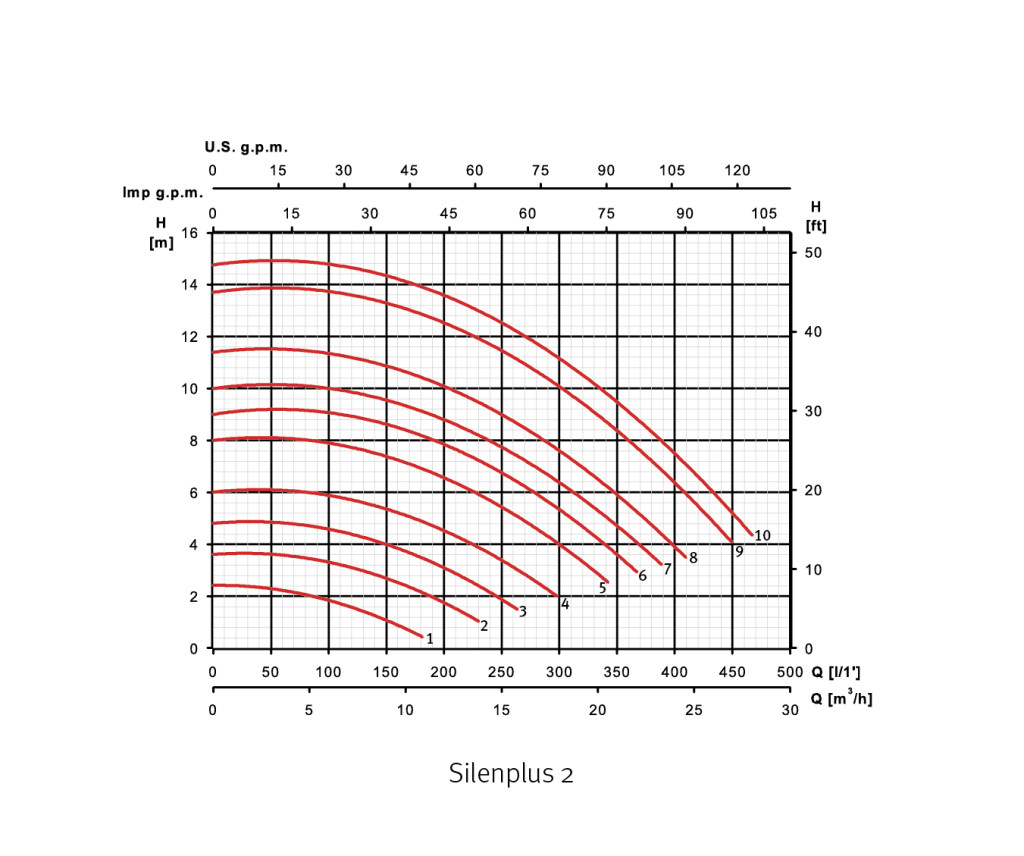

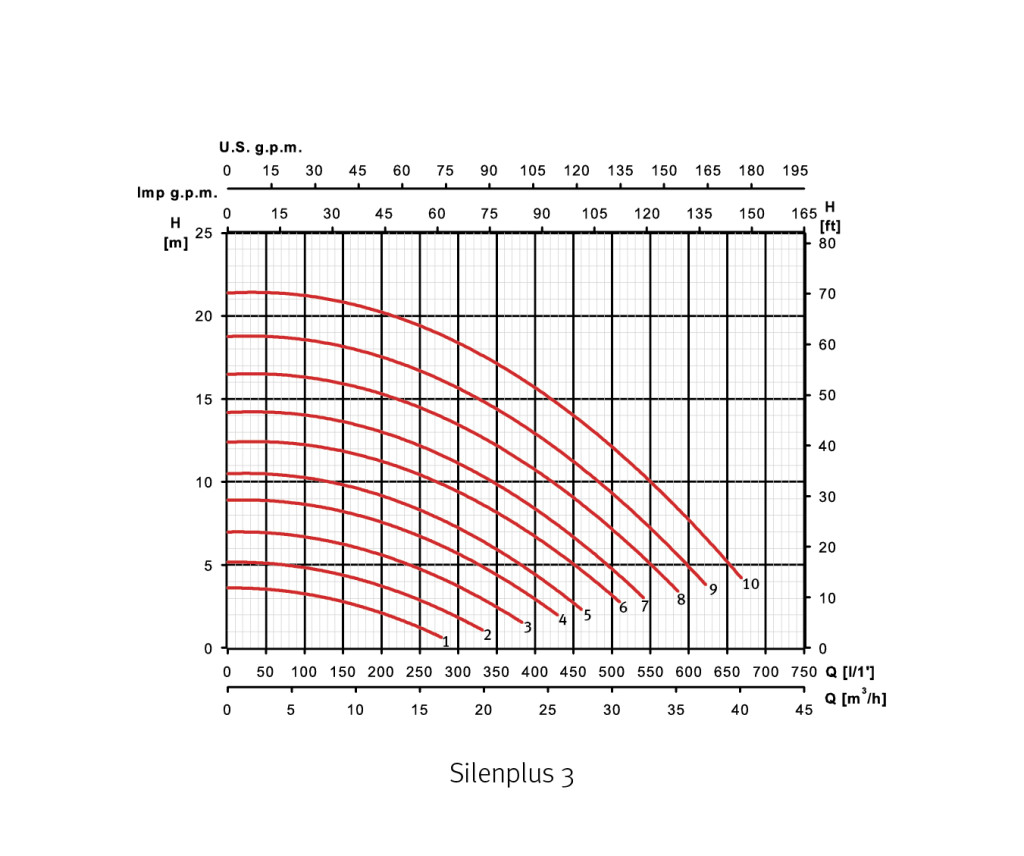

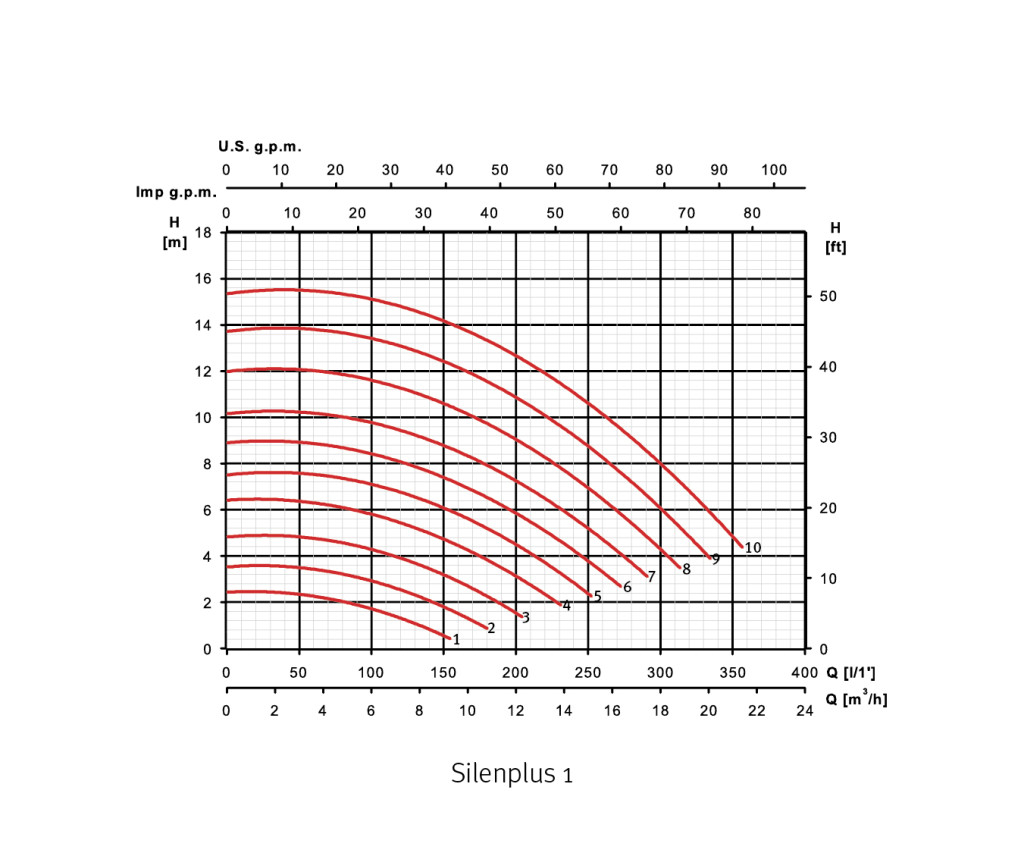

Performance
Electrical data
| Single-phase models | Intensity [A] | Input power P1 [kW] | Motor power P2 | |
|---|---|---|---|---|
| 50 Hz | 1~ 230V | 1~ | [kW] | [HP] |
|
SILENPLUS 1M
Width: 59 cm Height: 25 cm Depth : 36 cm Individual packaging weight: 13.300 Kg Individual packaging volume: 0.053 m³ Units per pallet in individual packaging : 30 Limitations
Electrical features
|
8,50 | 1,10 | 0,80 | 1,07 |
|
SILENPLUS 2M
Width: 68 cm Height: 31 cm Depth : 45 cm Individual packaging weight: 17.900 Kg Individual packaging volume: 0.095 m³ Units per pallet in individual packaging : 8 Limitations
Electrical features
|
10,00 | 1,50 | 1,10 | 1,48 |
|
SILENPLUS 3M
Width: 68 cm Height: 31 cm Depth : 45 cm Individual packaging weight: 22.800 Kg Individual packaging volume: 0.095 m³ Units per pallet in individual packaging : 8 Limitations
Electrical features
|
14,80 | 2,80 | 2,20 | 2,95 |
